Bill and Will's Synth

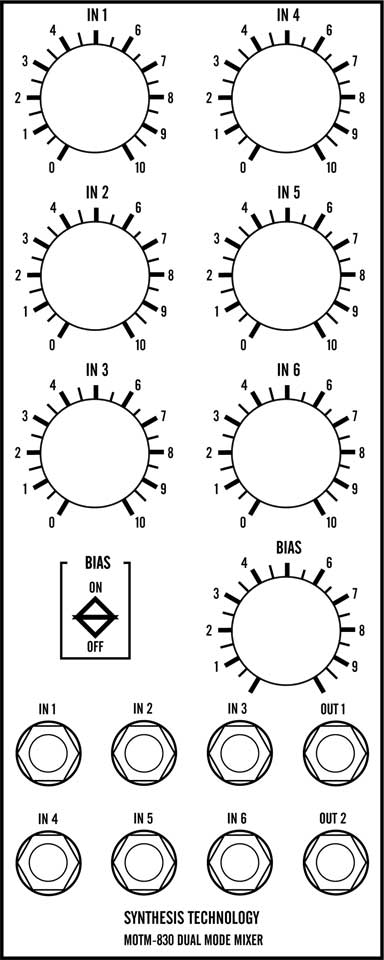

MOTM 830 Two Dot Oh Construction
"Dual Mode Mixer"

Why a second MOTM830 page?  Well, we're building another 830, and it's a little different when you're working from a Synth Tech 2.0 thing rather than a full-blown "kit."  If you feel the need, cross reference this with the KitPage here, but be forewarned, this was the first kit  we built and we stumbled through it - and the kit page - well - it ain't that great.

We're going go right into building the thing.

Like we did in our first 830, we're going to apply the Dave Brown / Scott Juskiw 830 modifications to our module. So we're going to use 100K1% R8, and R17, and a 49.9K 1% for R18.

Table of Contents

This page has become really long, so here's a table of contents that we hope will make it easier to traverse:

Parts - presents a Bill of Materials and notes about it

Construction Phase 1 - Resistors, Capacitors, IC Sockets, Power Plugs, MTA headers

Construction Phase 2 - Trimmers, Panel connections

Set up / Testing

Parts

Will and I have developed a parts-list / bill-of-materials in the form of an XL spreadsheet based on the parts list in the 420 User Guide.

Click here to download the XL spreadsheet (apx. 350K).

Click here to download the .pdf Synthesis Technology parts section of the User's Guide.

Click here to go to our Bill of Materials Page.

Construction Phase 1

All the stuff in Phase 1 gets soldered using "Organic" Solder.  At every break in the action, we wash the board off to get rid of the flux.

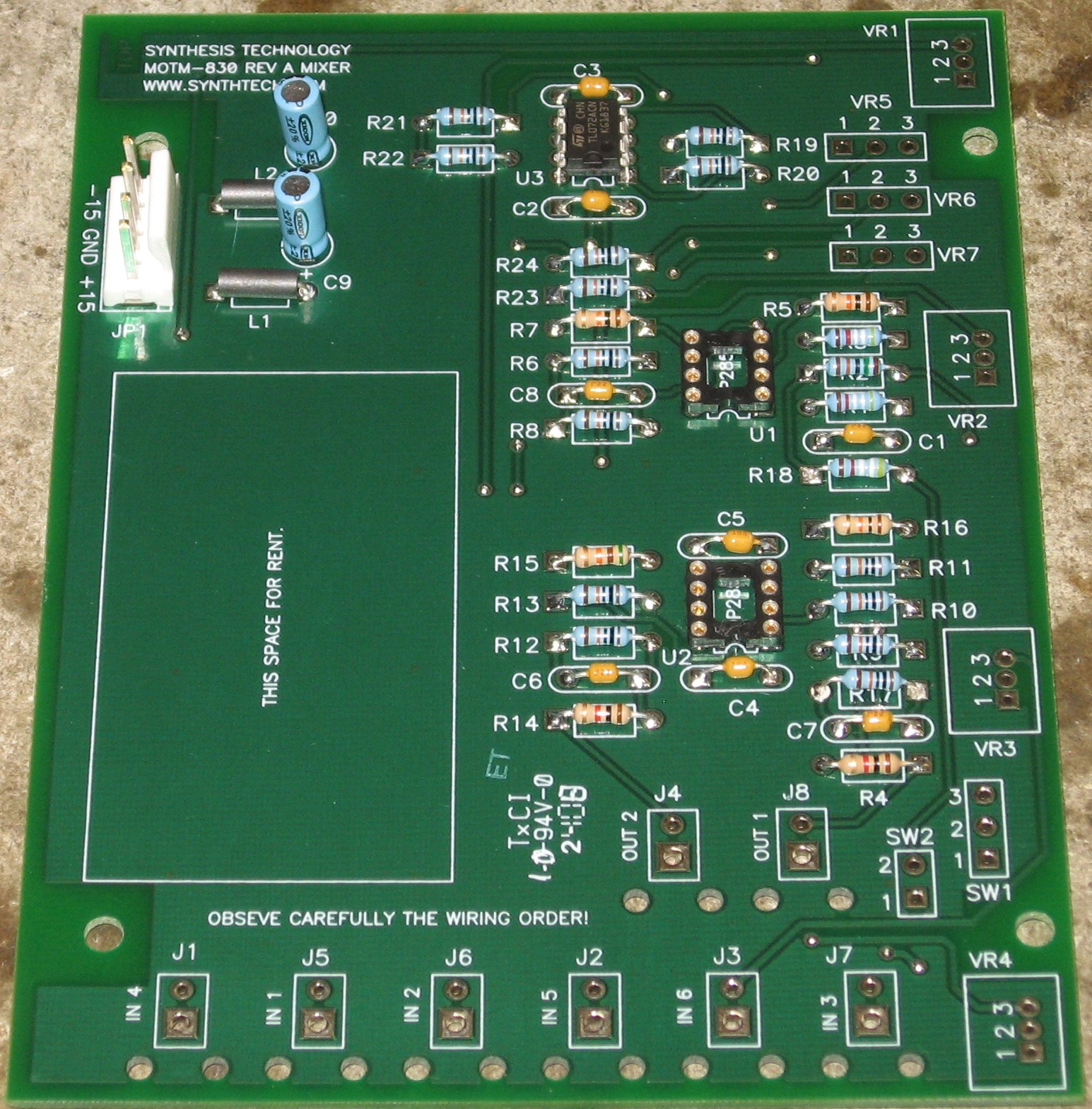

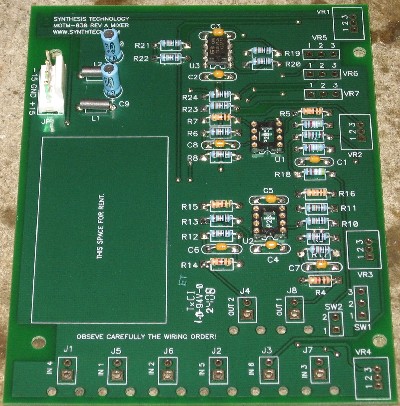

Resistors, Caps, Power, Semiconductors, Misc

As usual, whereas we are vigilant about orienting all the resistors, caps, etc. consistently so their values can be read easily (in case we need to trouble-shoot them later), we oriented the resistors with the "tolerance" stripe on the left (relative to the text on the pcb).  We got started doing it this way when we started building our synth and now we do it so all our modules are consistent with each other.  You might want to do it the opposite way - with the "tolerance" stripe on the right.

We decided to use IC sockets for the two OP285s.  If you're building this, you'll almost certainly be using OP275s - the 285s are extinct.  We acquired a few of the last ones Paul had and we were so nervous about damaging them by accident that we opted for the sockets.

Construction Phase 2

All the stuff in Phase 2 gets soldered using "No Clean" Solder.

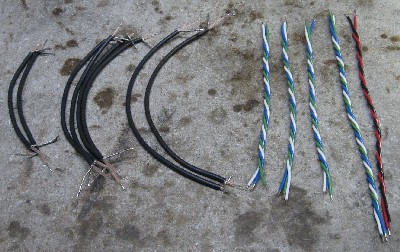

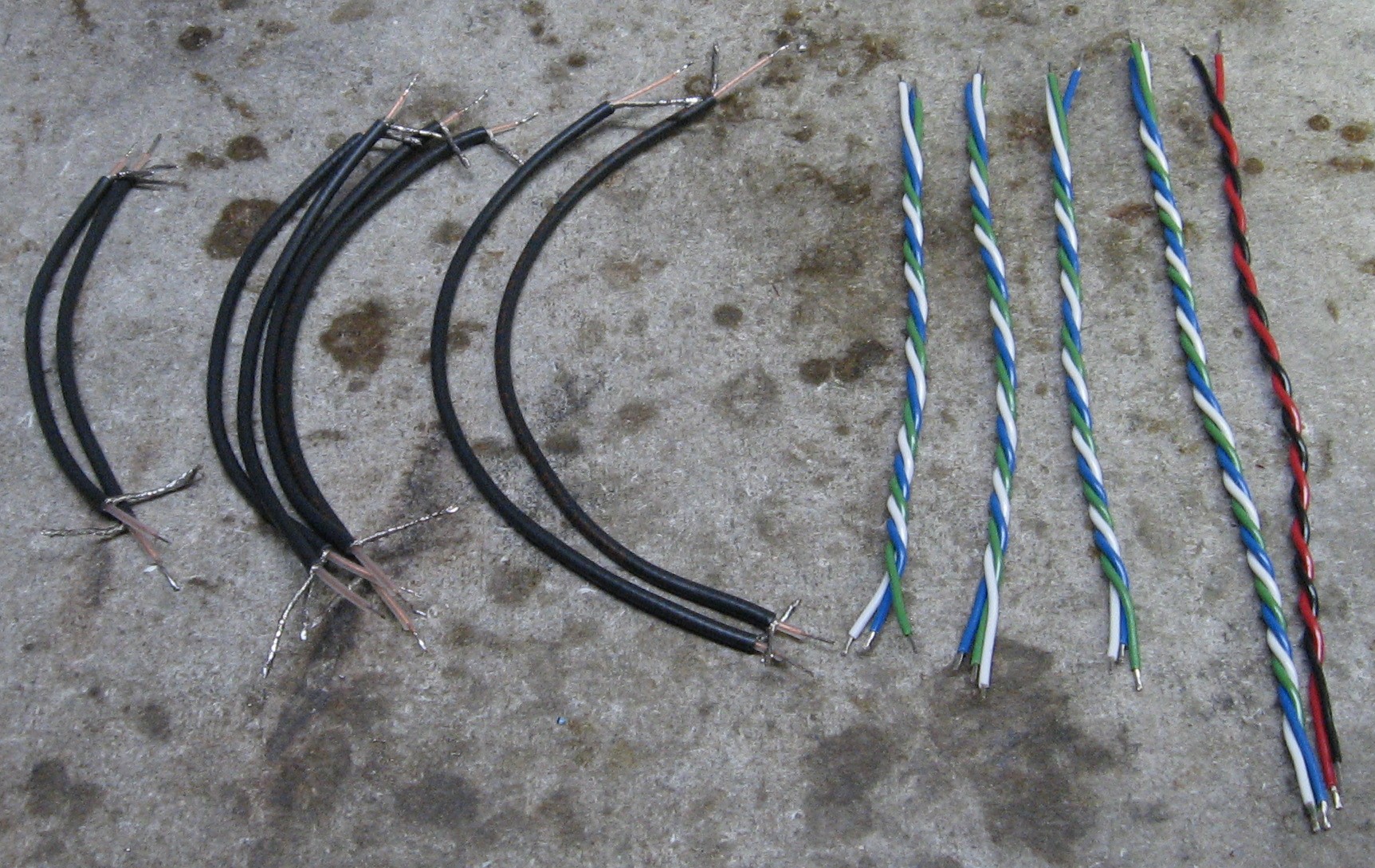

Wires

In hindsight, you might consider making VR7 6", SW2 5", J4 5", and J8 5" - but our lengths worked out fine.

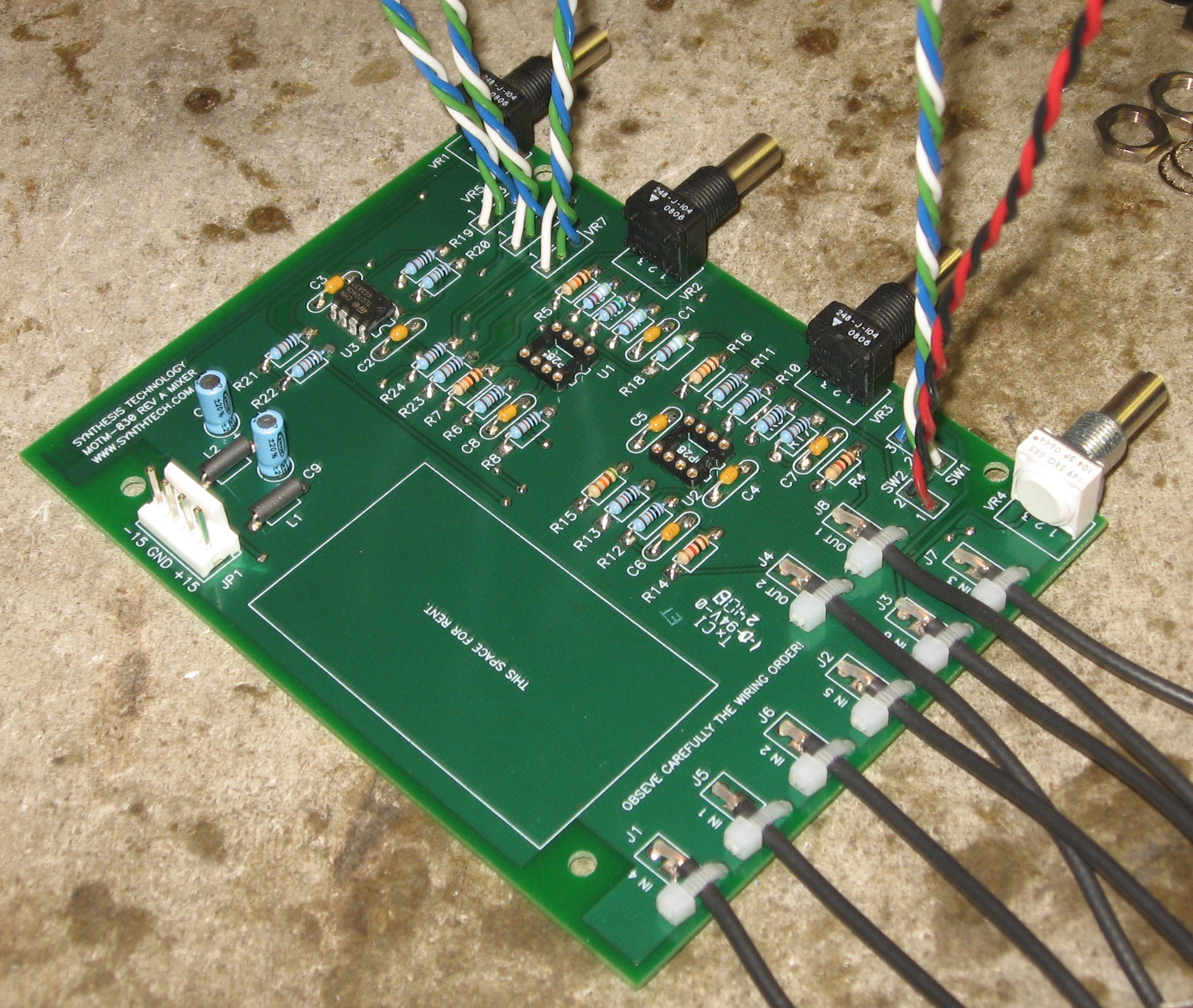

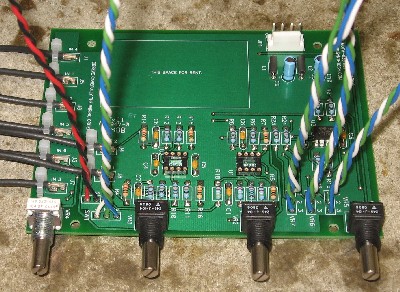

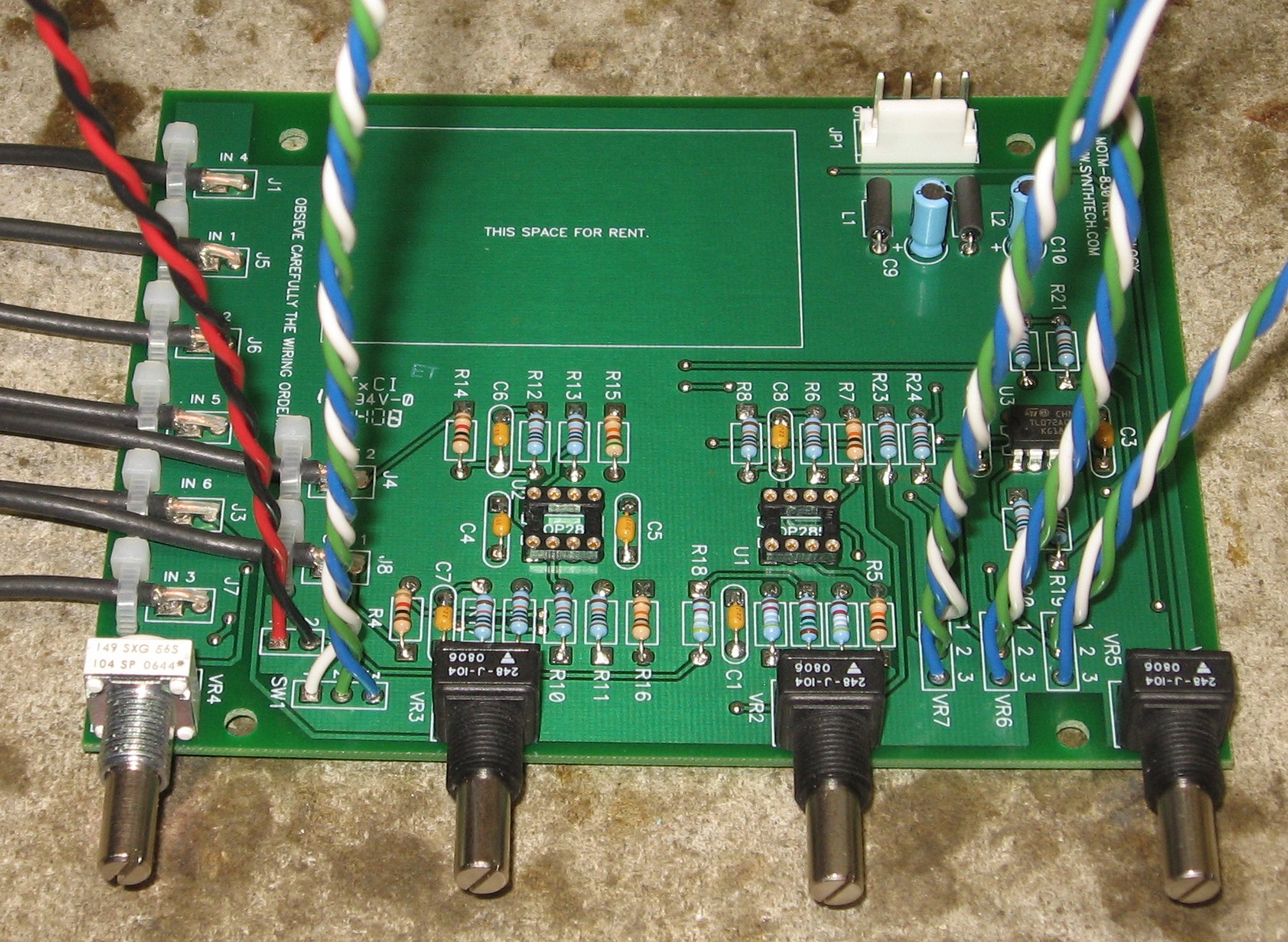

Pots, Wires

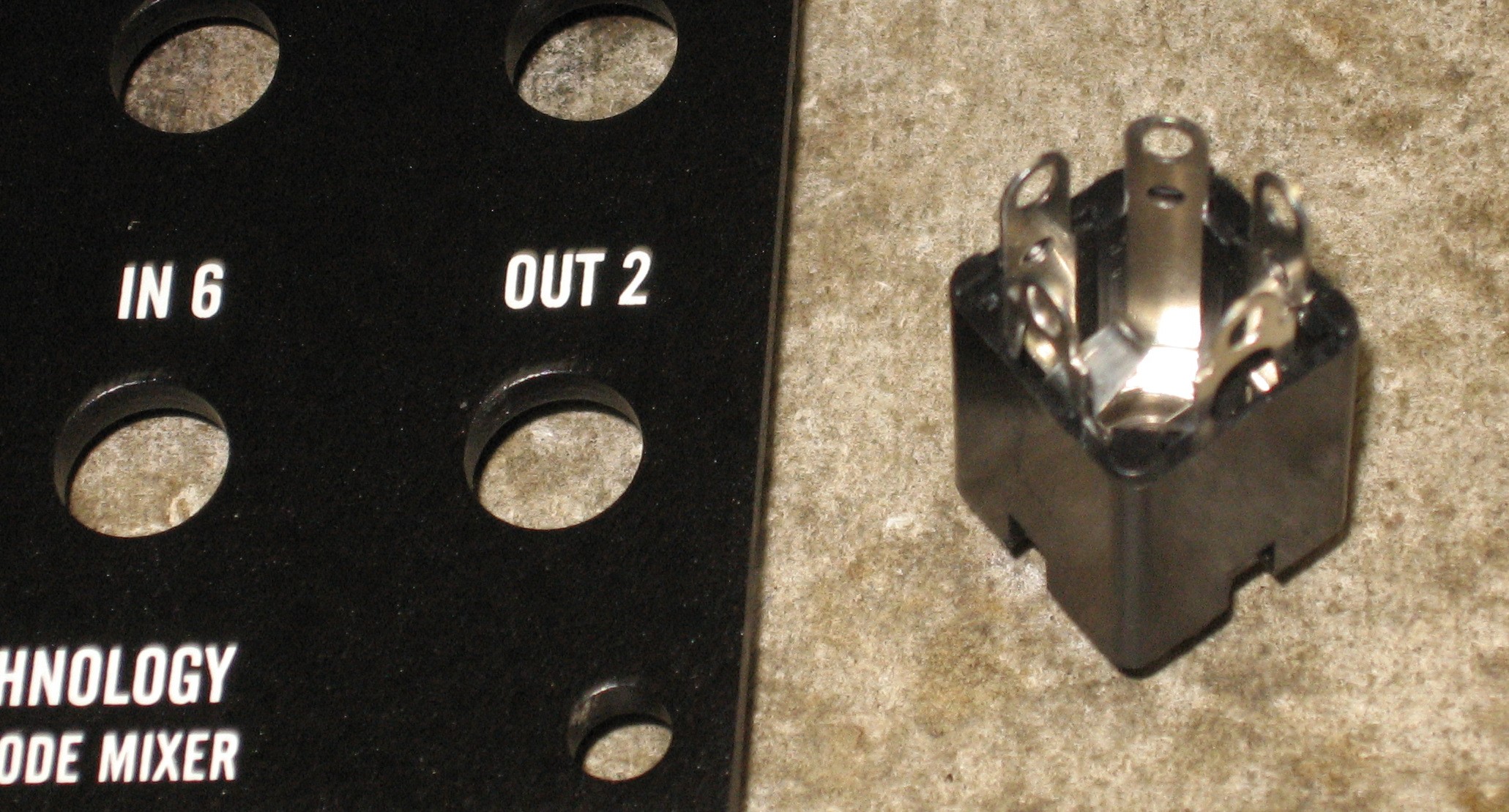

Out 2 Jack - Type 114B

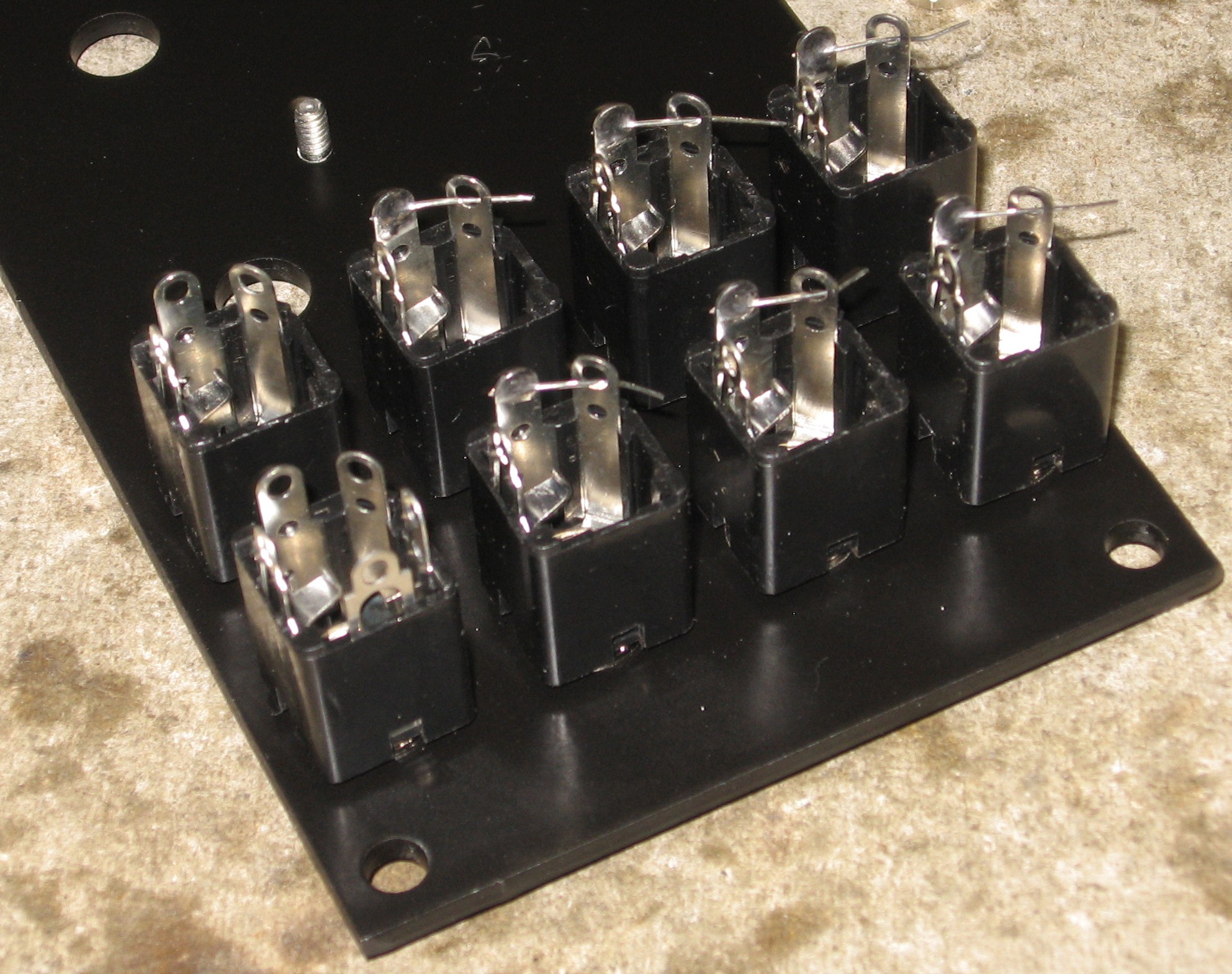

Jacks In Panel - Jumpers on Inputs

We soldered the jumpers only into the top (switch) lug so we could easily solder the shield into the angled lug along with the jumper later on.

Bracket

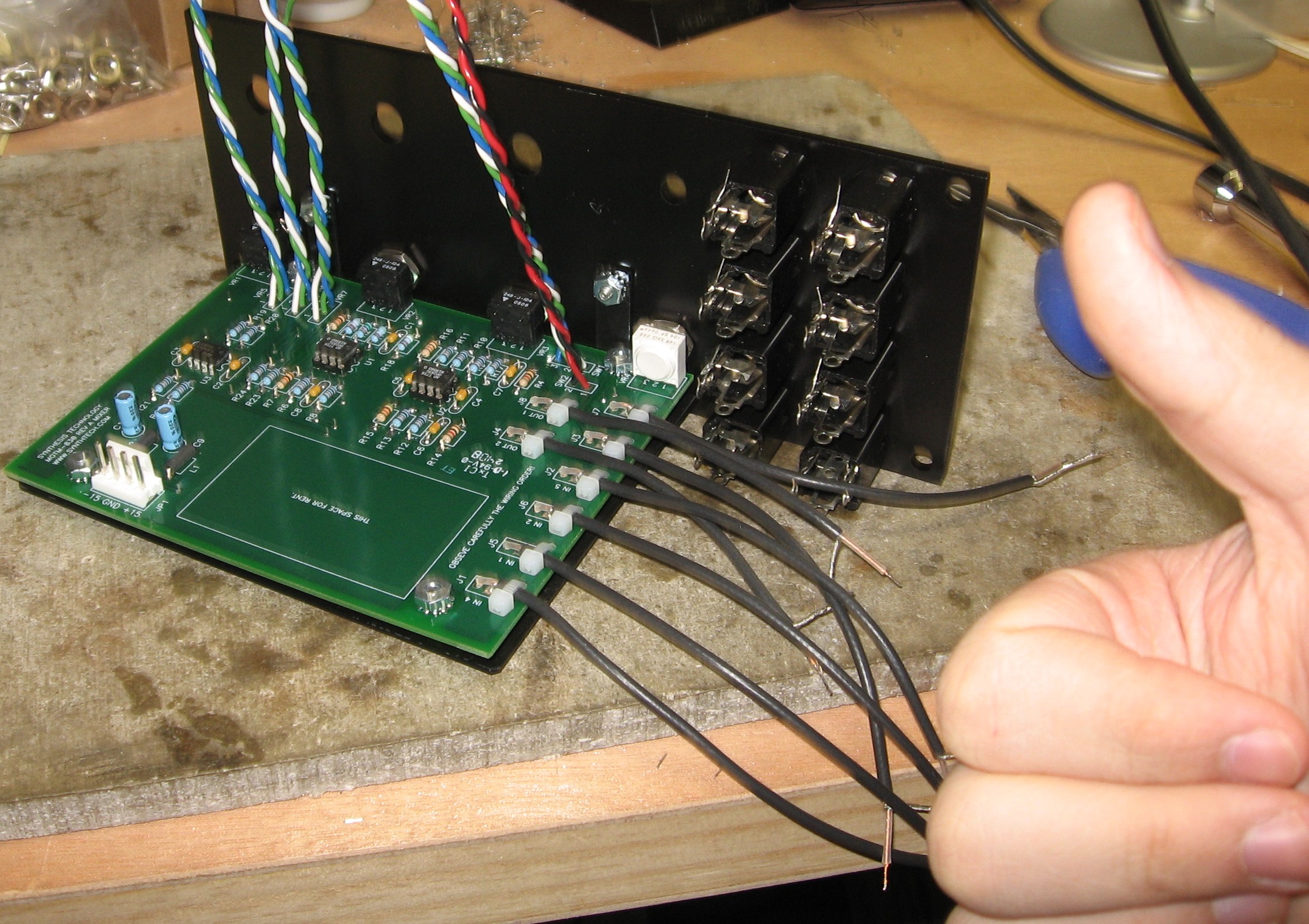

Will gives a thumbs-up - we're ready to "obseve carefully the wiring order."  Very funny, Paul.

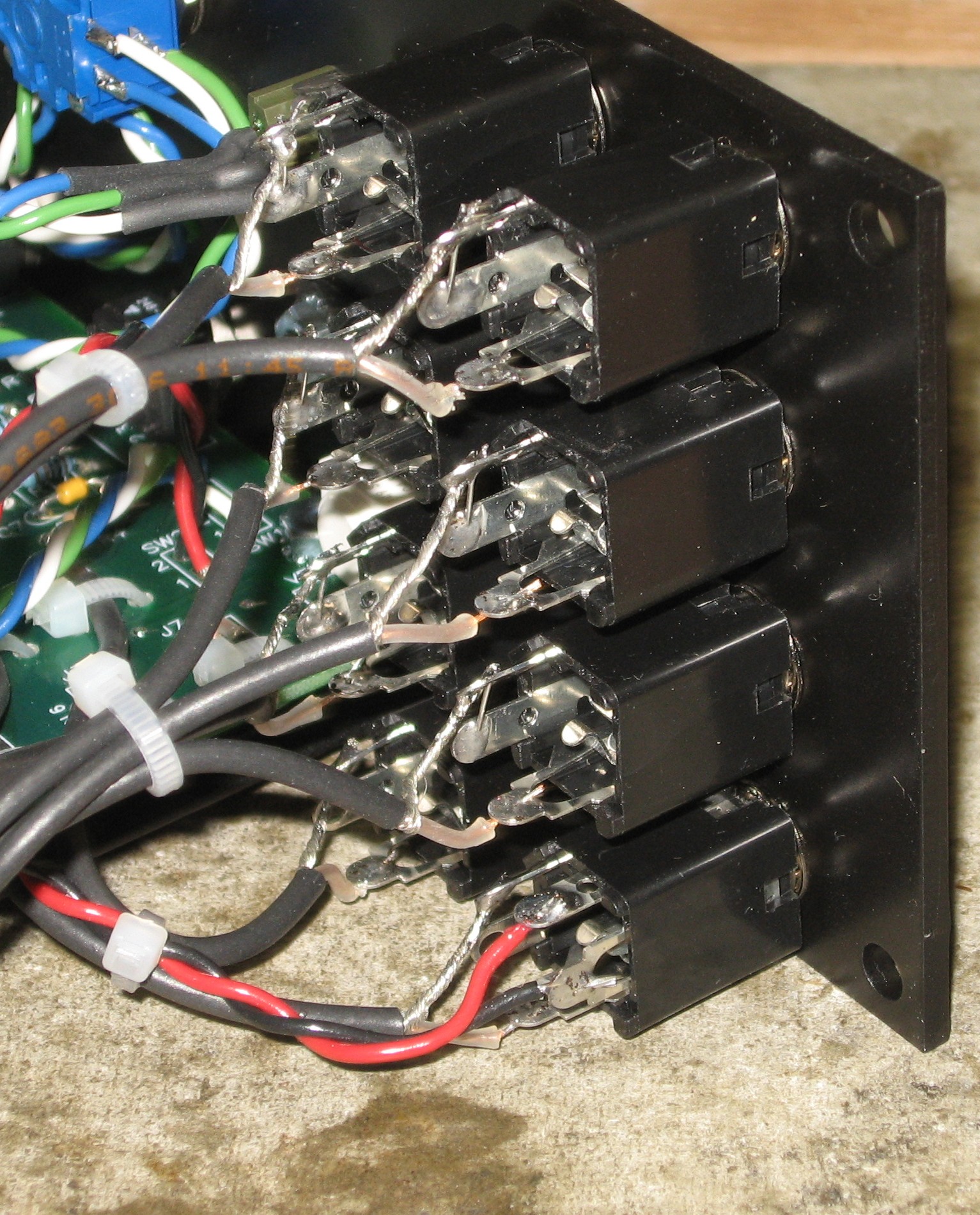

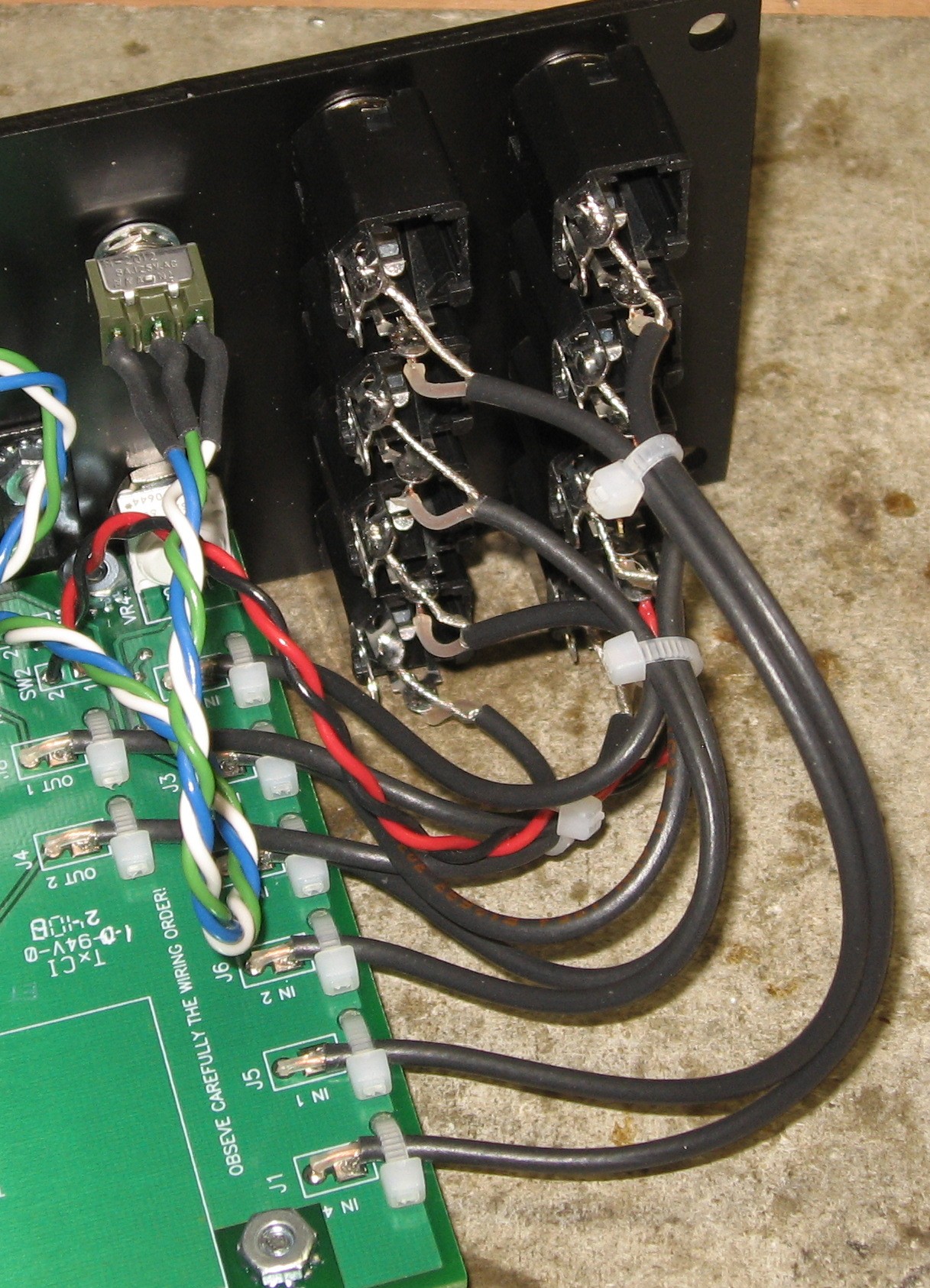

Wiring the jacks

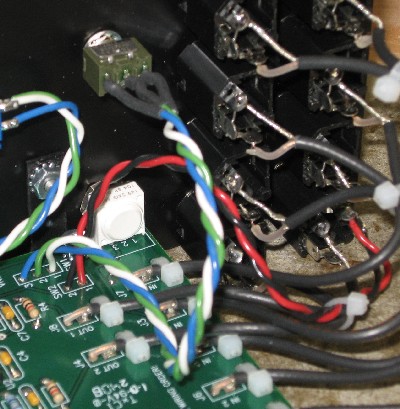

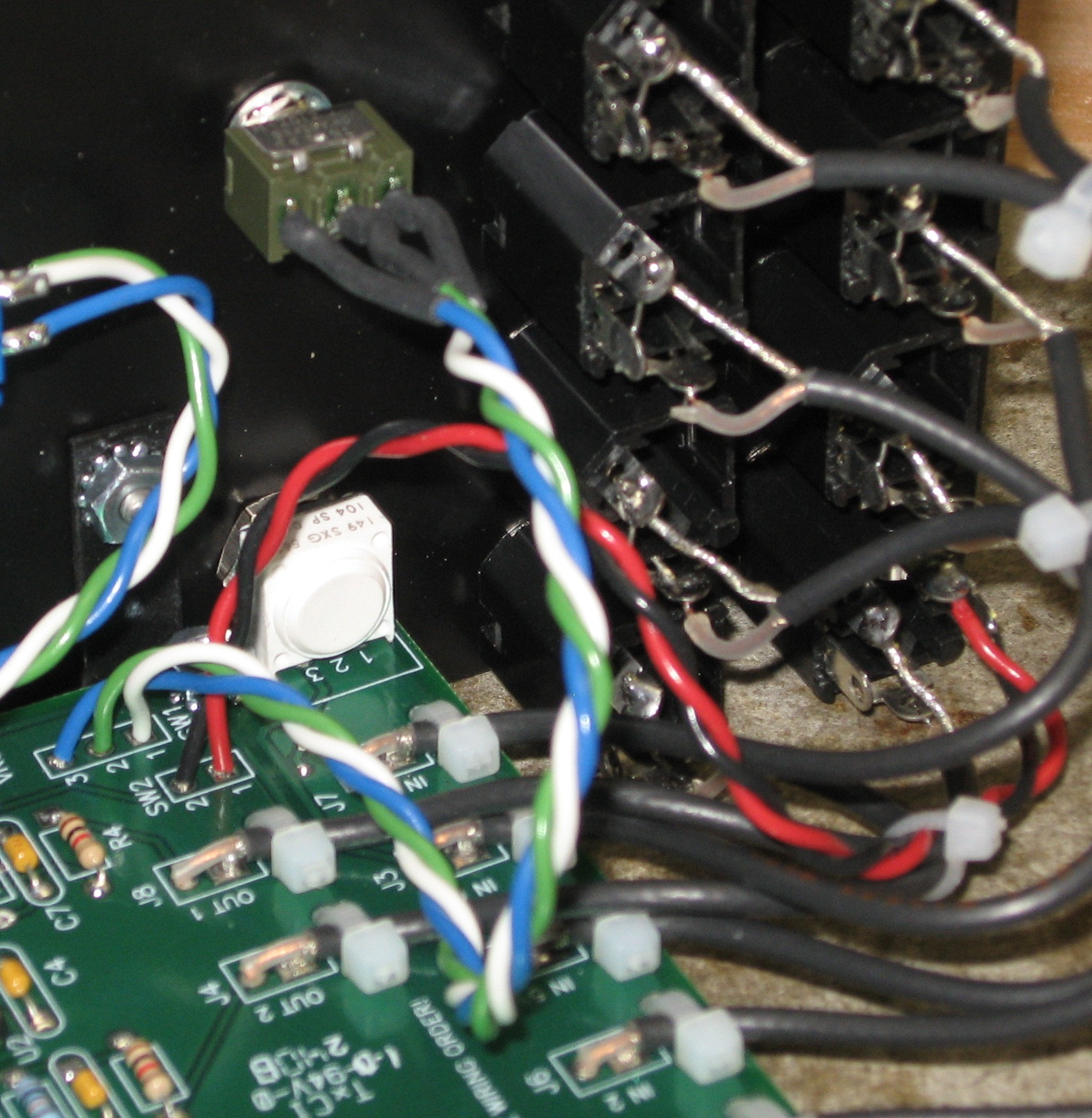

Wiring the switches

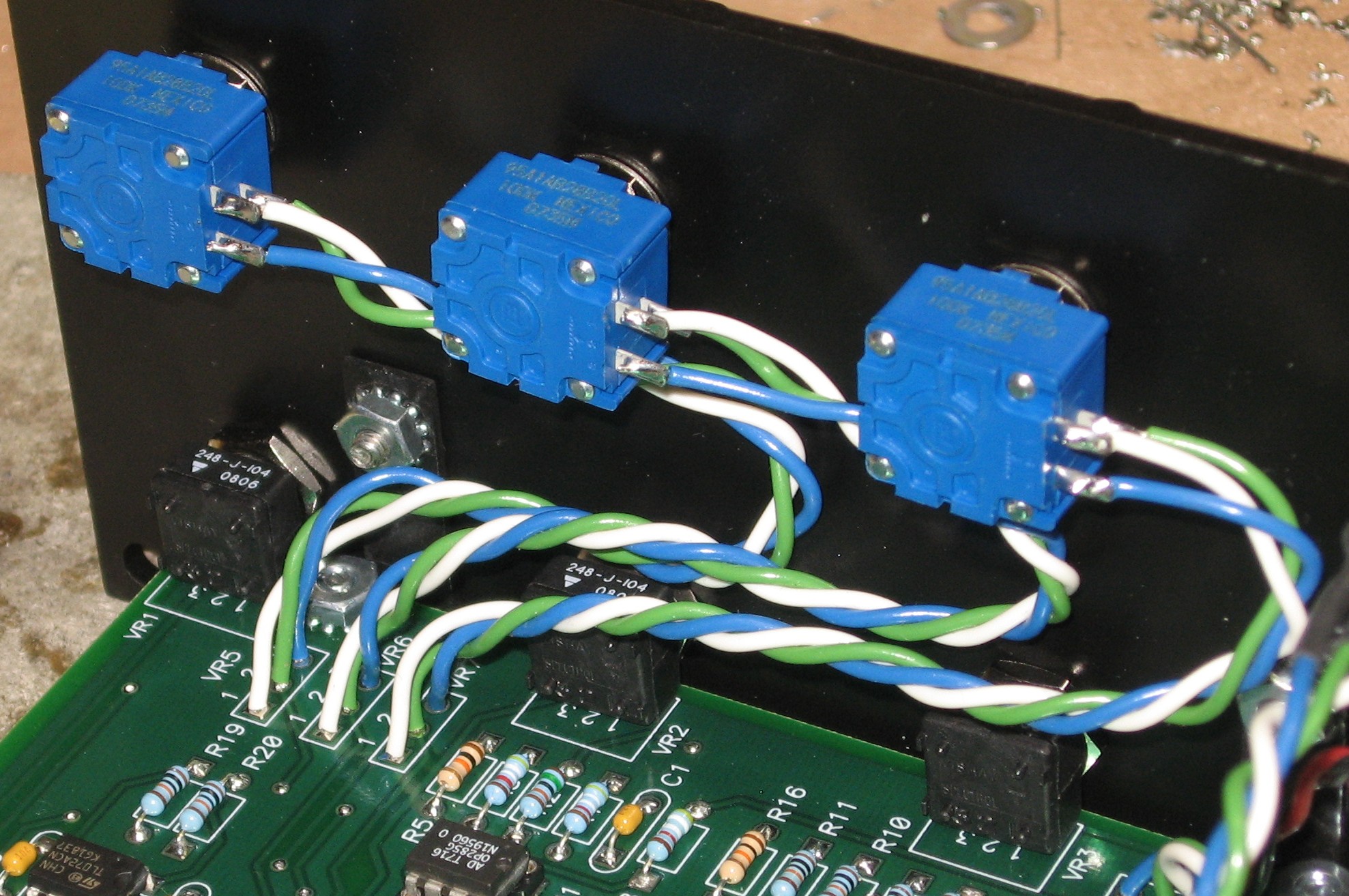

The Panel Mount Pots

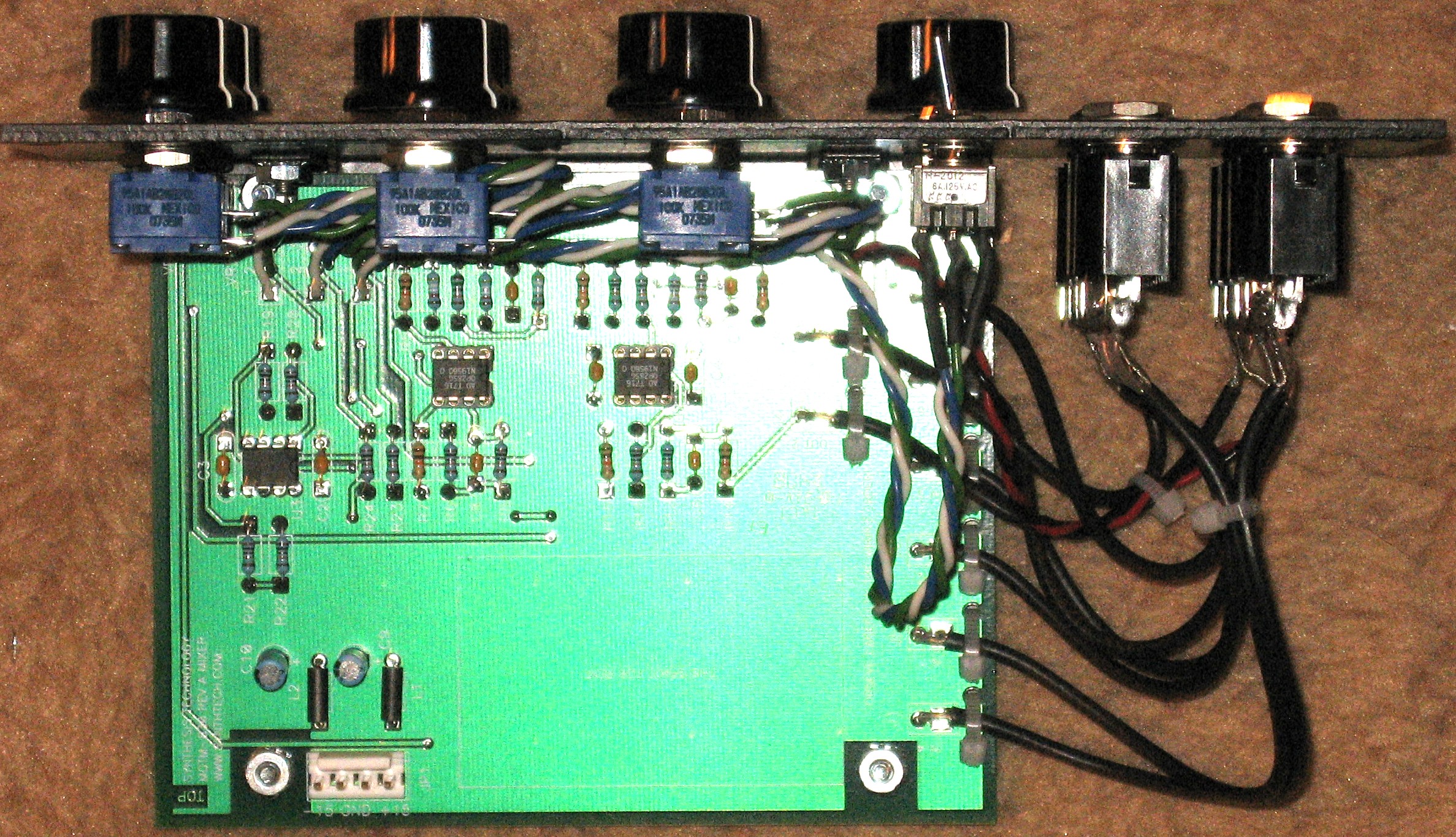

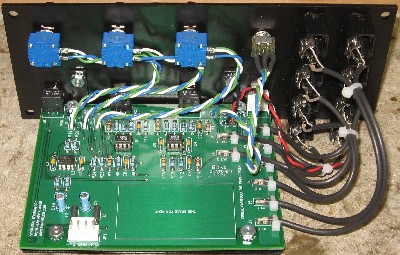

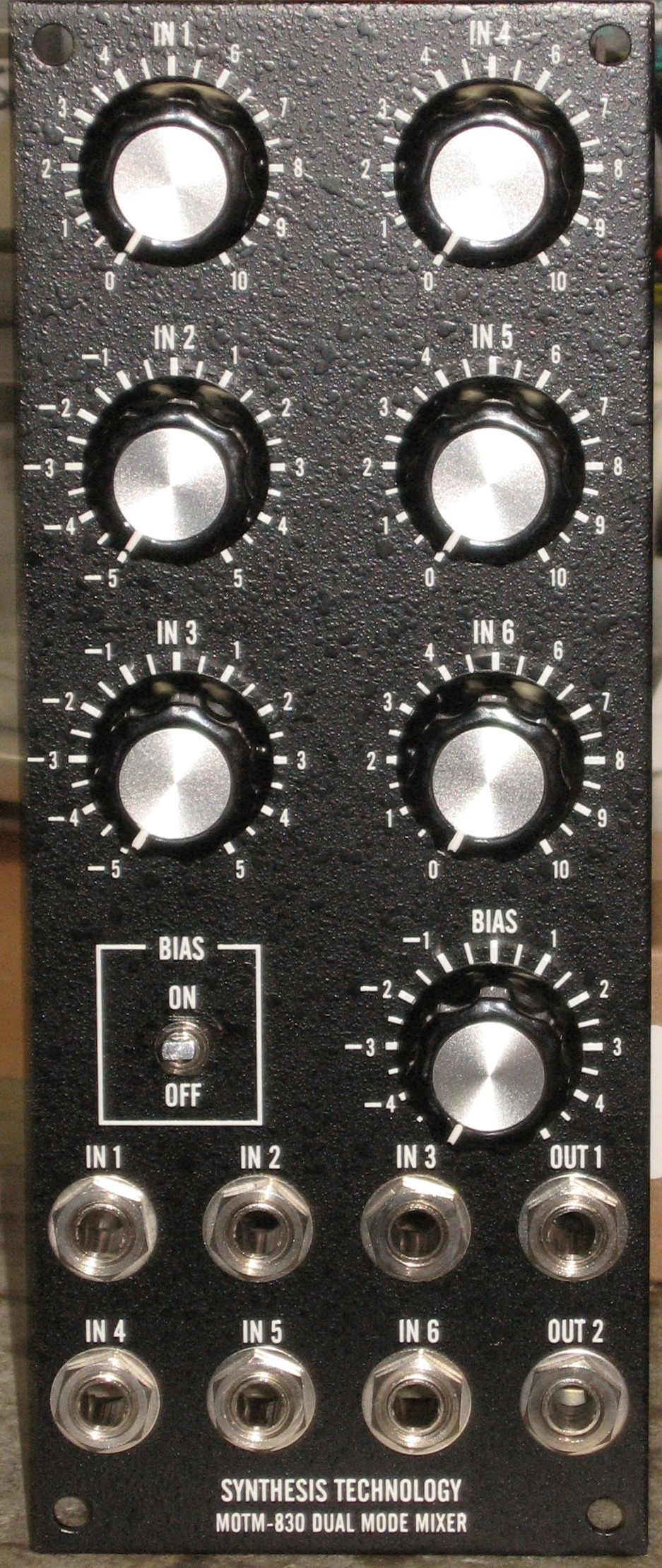

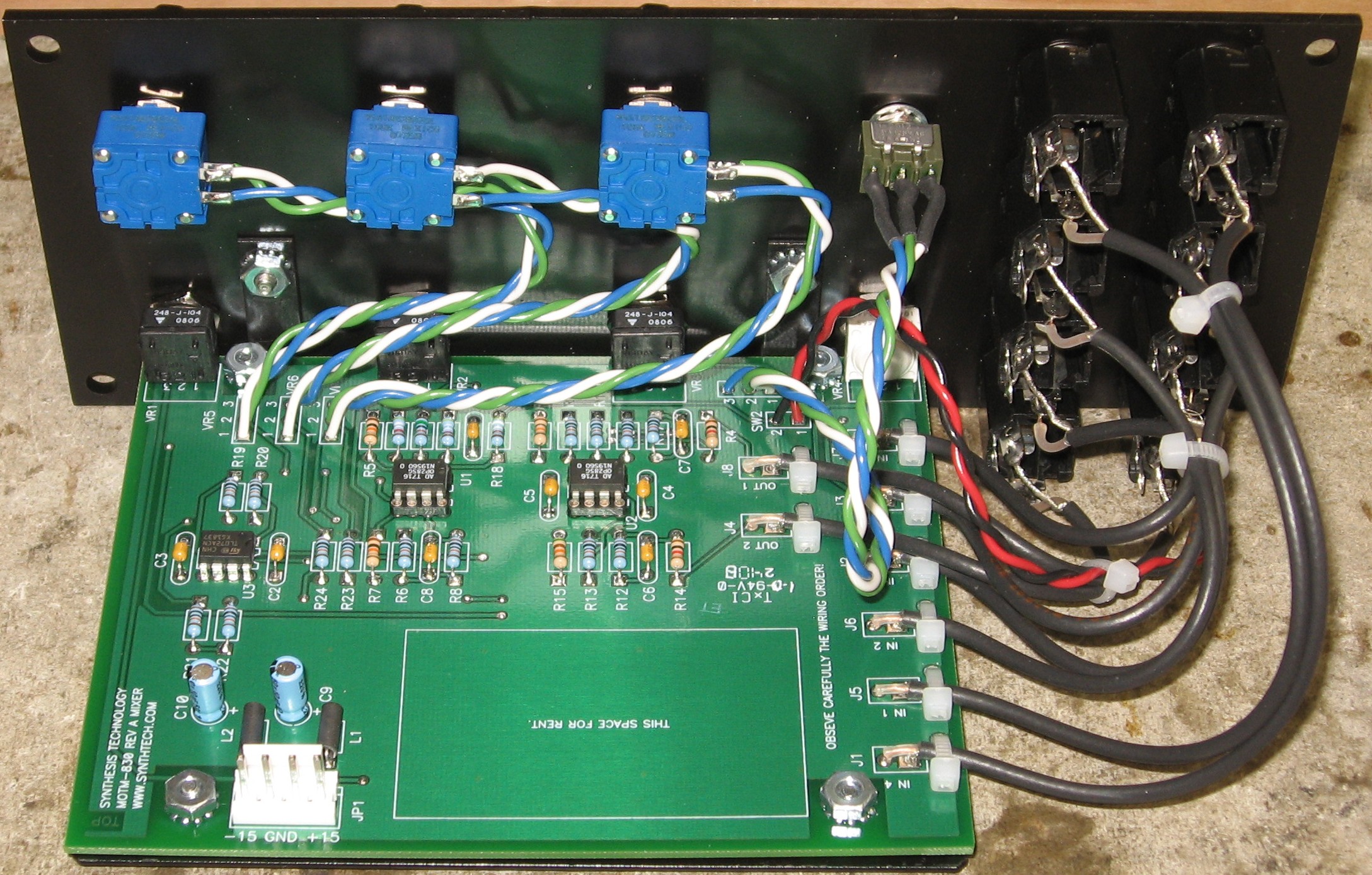

Construction Done

Set up / Testing

Use Notes
